KB: Configuring SQL Database Library to display only relevant tables

Solution Details

The Altium Database library is displaying a number of unwanted tables when connected to an SQL database using an ODBC Connection String.

This typically occurs because:

1. The ODBC configuration is set to display system tables
2. No specific schema or search path has been defined in the connection settings
3. The user account used for the connection has visibility to all tables in the database

To address these issues, consider the following solutions:

1. Disable System Tables in ODBC Configuration

The SQL-based Database Library might be displaying system tables due to your ODBC configuration settings. To disable them:

1. Open the ODBC Configuration with administrator rights
2. Navigate to the System DSN tab and select your Database source
3. Click the Configure button
4. Click on the Database option

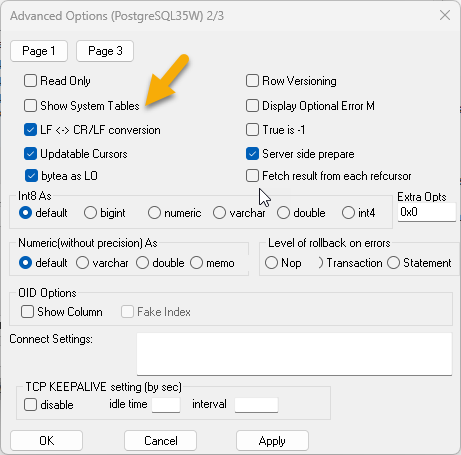

5. Locate the setting Show system tables and disable it
6. Click Apply and then OK
7. In the Altium Database library, switch the Source of Connection to Microsoft Access and then back to Use Connection String
8. Click Reconnect
9. Verify the table list now shows only the relevant tables

The changes should result in system tables no longer being displayed in your Database Library. For further configuration details, refer to: PostgreSQL ODBC Configuration Documentation.

2. Setting a Specific Search Path for Tables in ODBC Configuration

When your database containts multiple tables within the schema and you want to target specific tables:

1. Configure the ODBC connection with a specific search path

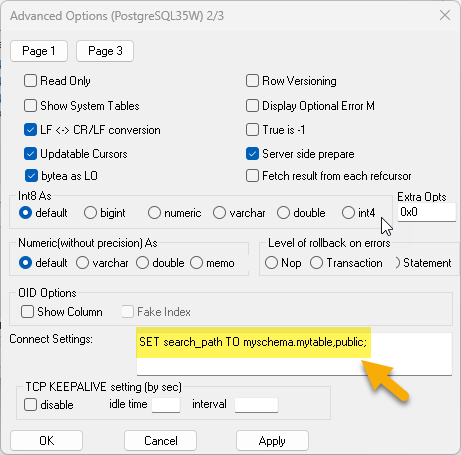

2. For example, add the following to your connection settings: SET search_path To myschema,public;
3. This will restrict the tables shown to only those in the specified schema

For more details refer to: Stack Overflow: Setting Search Path to Schema in PostgreSQL using ODBC.

3. Hide SQL Tables for Specific Users

For further configuration details, refer to: PostgreSQL ODBC Configuration Documentation
